Eanos

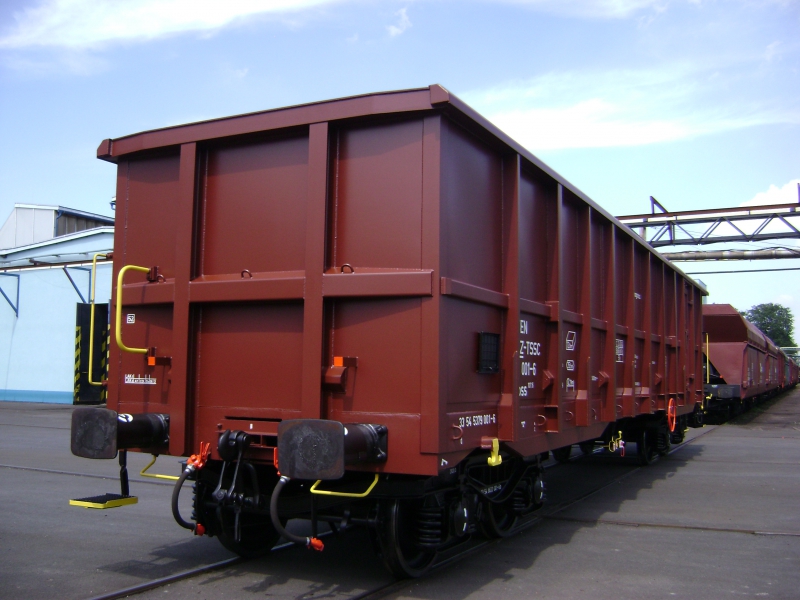

Four-axle open high-wall wagon for the transport of coal, coke, ore, bulk substrate, piece goods and scrap that do not require covered space for transportation. The car is approved for international operation according to TSI

Empty weight: 22,5 t ± 3%
Track: 1435mm
Loading weight: 67,5 t
Weight of loaded wagon: 90 t
Axle weight: 22.5 t
Loading capacity: 72 m3
Loading area: 35.5 m2
Chassis type: Y25 Ls (s)
Maximum empty car speed: 120 km / h
Maximum speed of loaded wagon: 100 km / h
Loading length: 12.79 m
Loading width: 2.76 m
DAKO-GP-A-K brake
Floor height from HM: 1255 mm
Side wall height: 2025 mm
