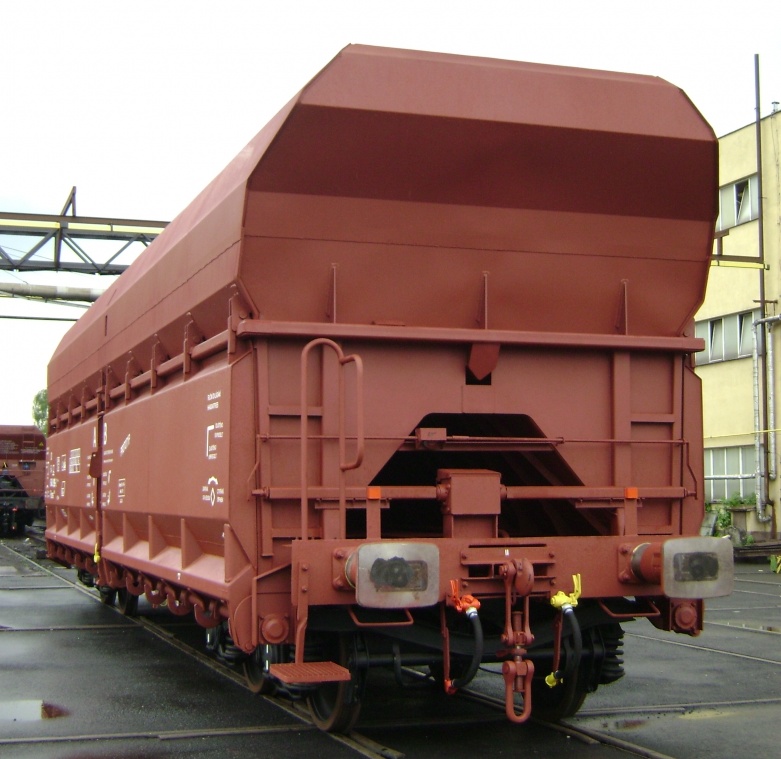

Falns(s), typ 9-436.1
Four axle open hopper wagon with hand and air control of side flaps for transport of coal, coke and gravel, approved to international operation according to TSI.
| Tare weight 25 t ± 3% | |
|---|---|
| Railway gauge 1435 mm | |
| Payload 65 t | |
| Total weight 90 t | |
| Axle load 22,5 t | |
| Load volume 85 m3 | |
| Length over buffers 13700 mm | |
| Bogie type Y25 Ls(s) | |
| Vmax – empty wagon 120 km/h | |
| Vmax – loaded wagon with axle load of 22,5t 100km/h | |
| Vmax – loaded wagon with axle load of 20t 120km/h | |
| Pneumatic brake DAKO-GP-A K |
